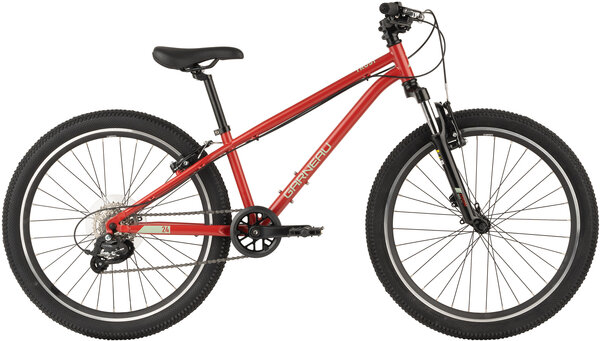

Garneau Trust 24
$342.00
$569.99
Details
This 24-inch light aluminum bike is made to last. It features a progressive geometry that will sustain the roughest terrains. It's also fun to ride and super stable. If you want to make sure your child enjoys the ride, get a decent specialized bike.

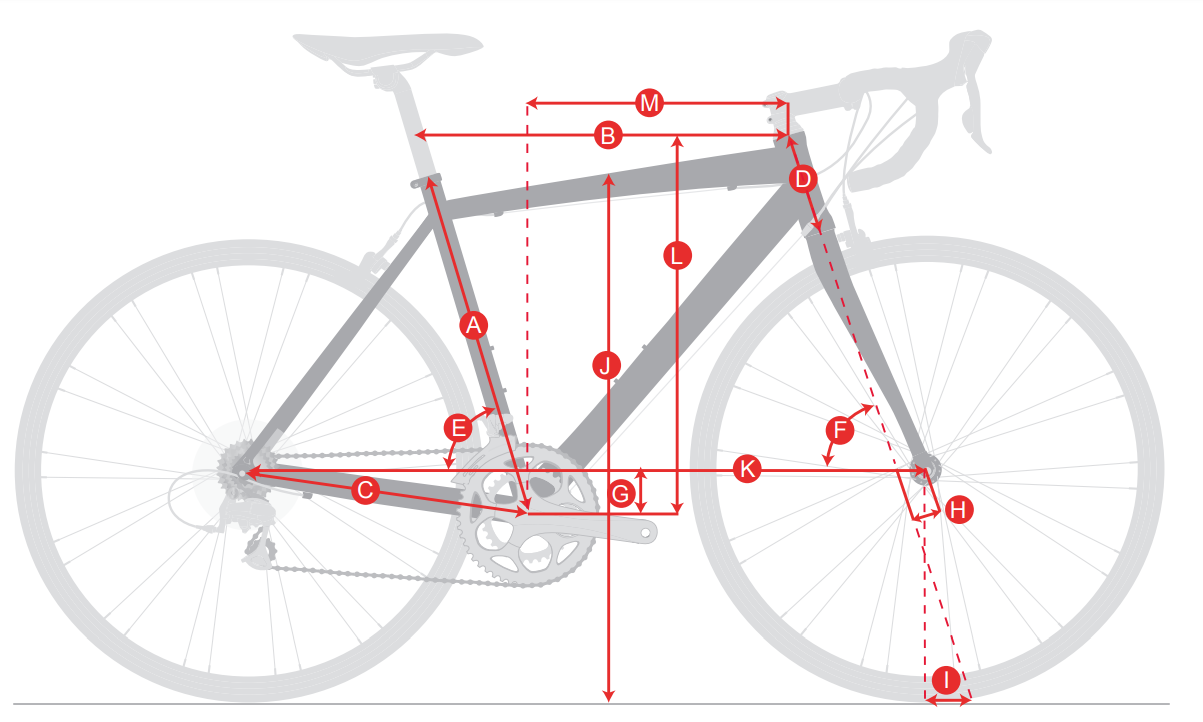

| Size | O/S | |
|---|---|---|
| A | Seat tube length (mm) | 290 |
| B | Effective top tube length (mm) | 520 |
| C | Chain stay length (mm) | 380 |
| E | Seat tube angle (°) | 73 |
| F | Head tube angle (°) | 68 |
| G | Bottom bracket drop (mm) | 42 |
| H | Fork offset (mm) | 40 |
| I | Trail (mm) | 80 |
| J | Standover height (mm) | 618 |
| K | Wheelbase (mm) | 977 |
| L | Stack (mm) | 539 |
| M | Reach (mm) | 355 |
Specs
| Frame | HTS steel |
|---|---|
| Fork | Zoom 565 suspension, 50 mm travel |
| Wheels | Star Circle J19 24'' / KT freewheel hubs |
| Rims | Star Circle J19, 24'', DW, 32h |
| Hubs |
Front: KT, Aluminum, QR Rear: KT, Aluminum, QR, freewheel |
| Spokes | 14g, Stainless steel |
| Tires | 24 x 2,1' |
| Bottom Bracket | Square taper, 68 x 118mm |
| Crankset | Aluminum, 3-pcs, 30T |
| Shifters | Microshift TS71-7, Trigger |
| Front Derailleur | n/a |
| Rear Derailleur | Microshift M26CS |
| Cassette/Freewheel | Freewheel 14-32T, 7-speed |
| Chain | KMC Z7 |
| Brakes | Aluminum, V-type |
| Brake Levers | Junior specific, aluminum |
| Handlebars | Aluminum, 40mm rise, Ø25.4 mm |
| Tape/Grips | Garneau Junior |
| Stem | Aluminum, Ahead, 40mm, 7° |
| Headset | Threadless , 1 1/8'' |
| Seatpost | Aluminum, 1-bolt, Ø25.4 mm |
| Saddle | Garneau Junior |
| Pedals | Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Fast Red / 24-inch | 690222312892 | 210000005324 |
